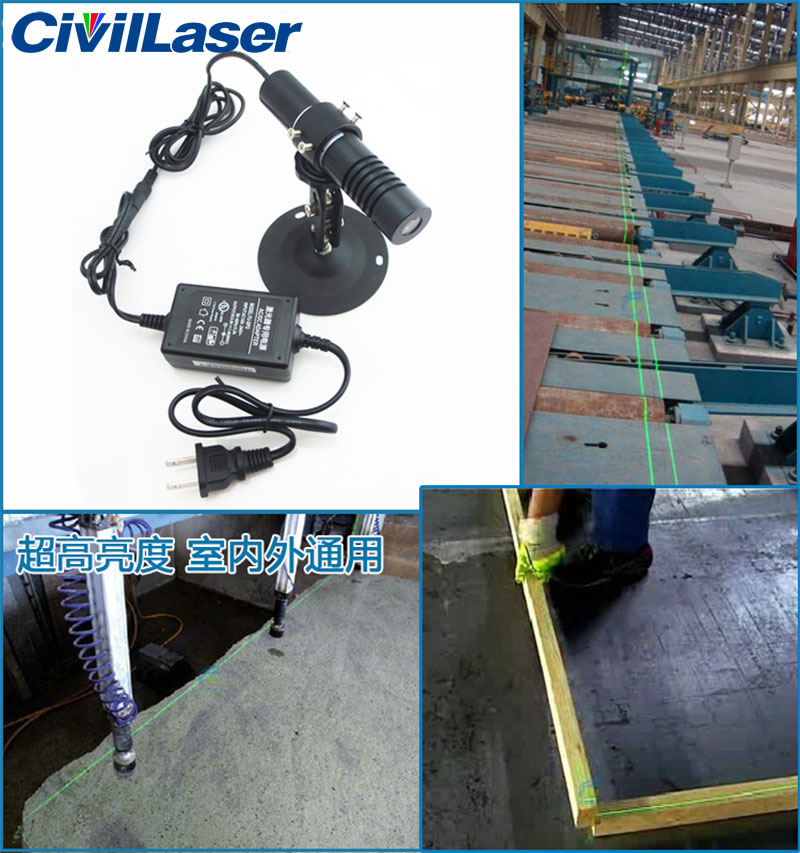

520nm 50mw High Stable Verde line laser module Verde positioning light for stone carpentry

 520nm 50mw High Stable Verde line laser module Verde positioning light for stone carpentry

ESPECIFICACIONES:
Name: 520nm 50mw High Stable Verde line laser module
Longitud de onda de salida: 520nm
Potencia de salida: ≤50mw
Forma láser: Line
Tipo de láser: Verde laser
Color exterior: Black
Tamaño: 22*110mm(Can be customized)
Current: ≤400mA
Tensión de funcionamiento: DC 2.8-5.2(V)
Divergence angle: 0.1-2mrad
Fan angle: 110 degree
Installation height: 0-10 meters
Operating Temperature: -10℃~60℃
Storage Temperature: -40℃~80℃
Line Length: 1.2m (can be customized)
Garantía: 12 Months Factory warranty

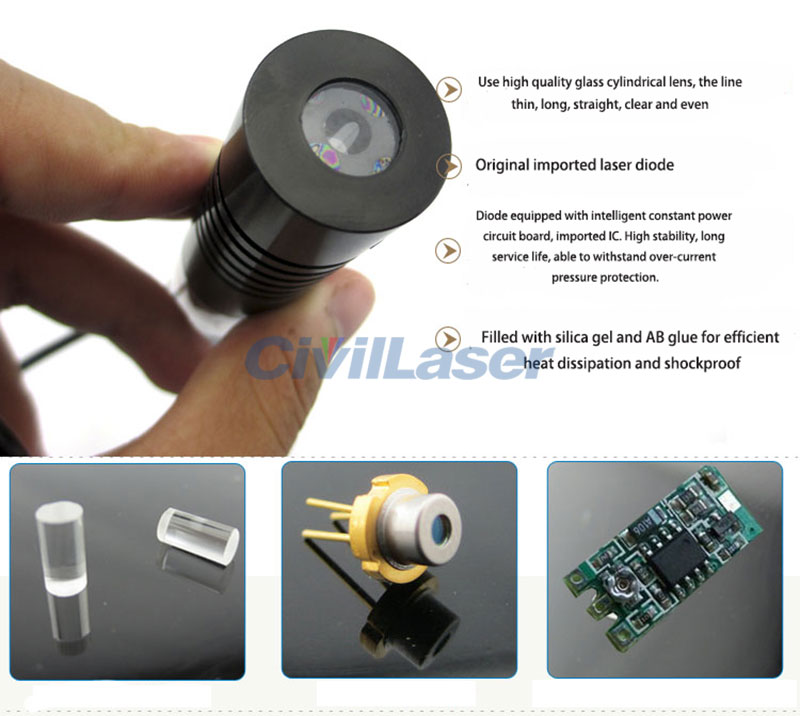

Structure Features: High quality laser diode + metal shell + high quality lens + constant power circuit board + wire

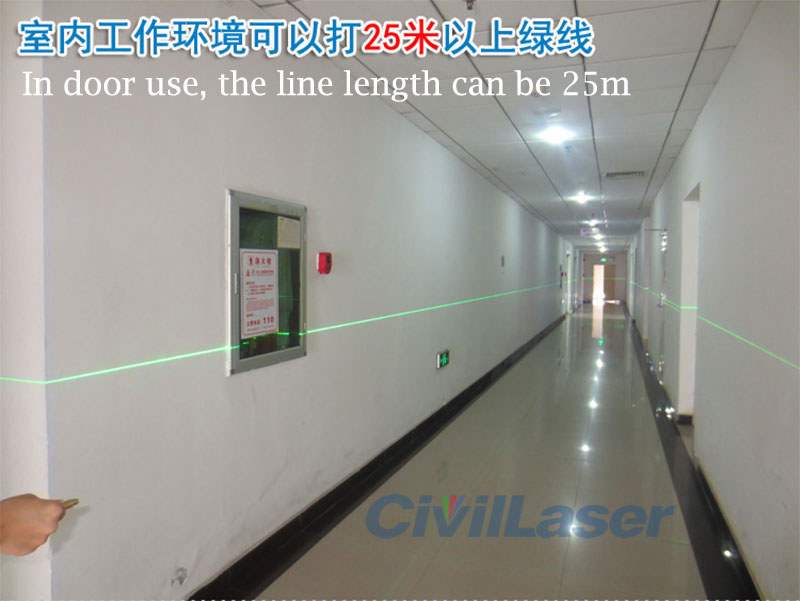

The indoor working environment can reach 25m;
In semi outdoor (non direct sunlight) working environment, the line length can be 10 meters;

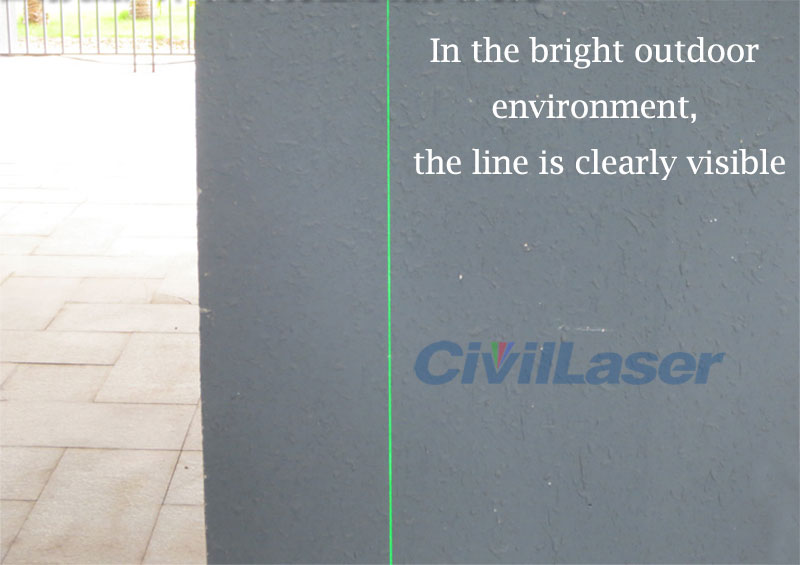

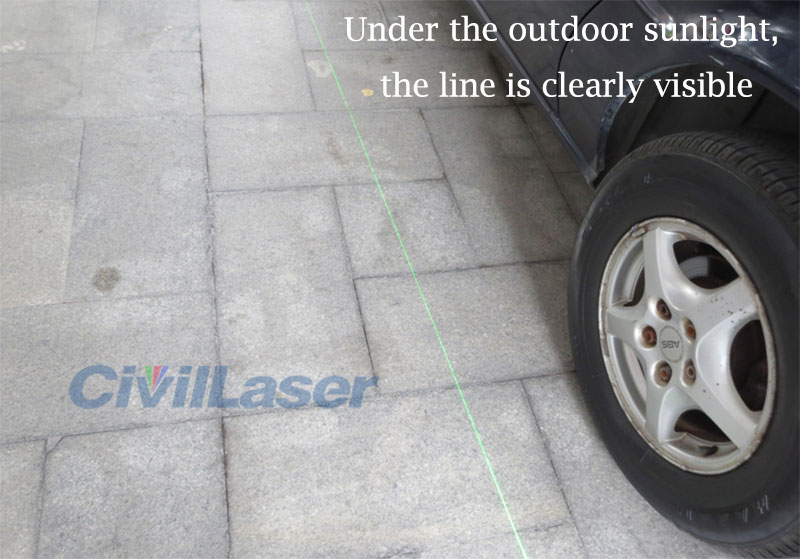

In the whole outdoor (direct sunlight) working environment, the line length can be 5 meters;

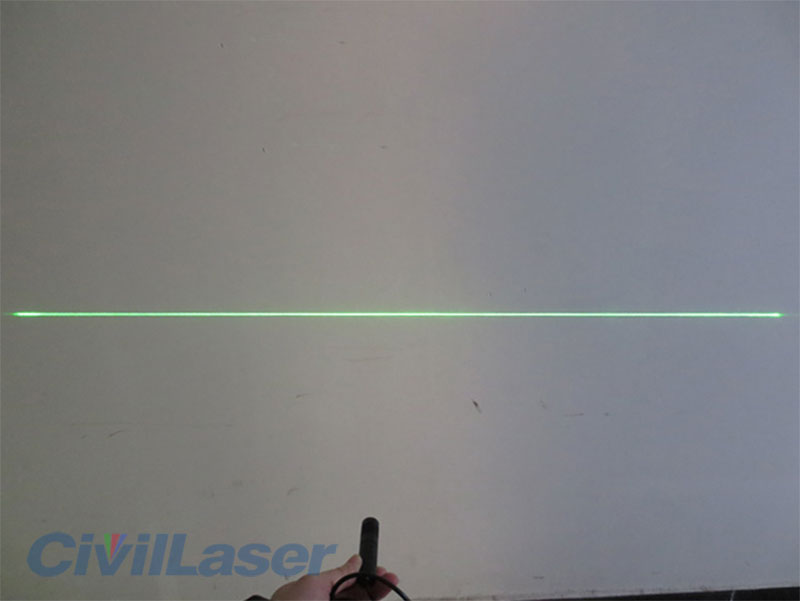

The green line is fine and uniform, with high collimation and stability;

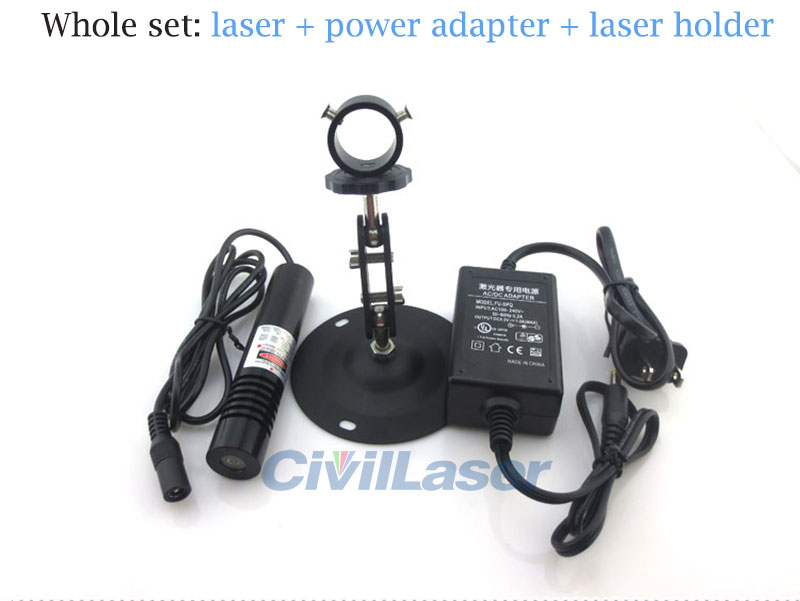

El paquete incluye:
1* Módulo láser verde;
1* Laser mount;
1* Adjustable Power supply;

Advantage:
1 ultra high brightness for indoor and outdoor use;
2 the width of green line can be produced according to the customer's requirements (0.8mm - several centimeters) to meet your different use requirements;
3. Choose the length of green line from 5-110 degrees for the angle of one word lens;
4. The shell is aviation aluminum plating insulating paint, which can not only fully dissipate heat, but also prevent shock, fall and static electricity;
5. The new imported tube core high quality Taiwan lens can be opened 24 hours a day;
6 intelligent drive board with imported IC can supply power in a wide range of 2.8-5.2v (other voltages can be customized);
7 high temperature and corrosion resistant, DC plug line is suitable for all-weather and all-weather use.
